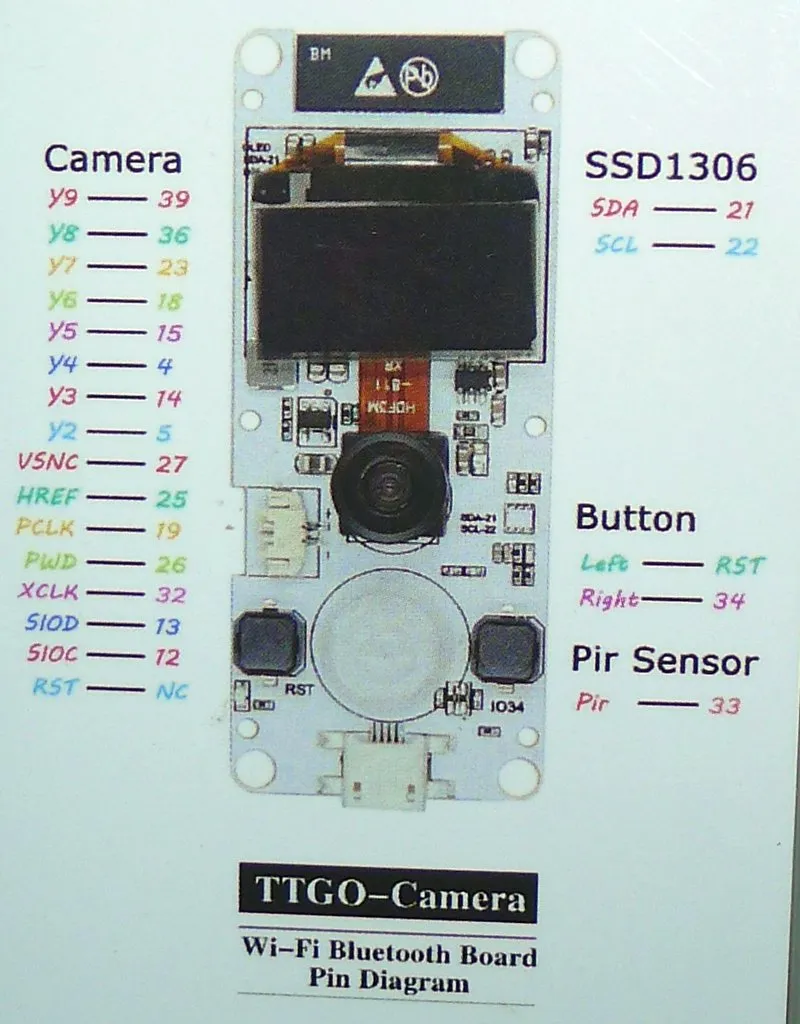

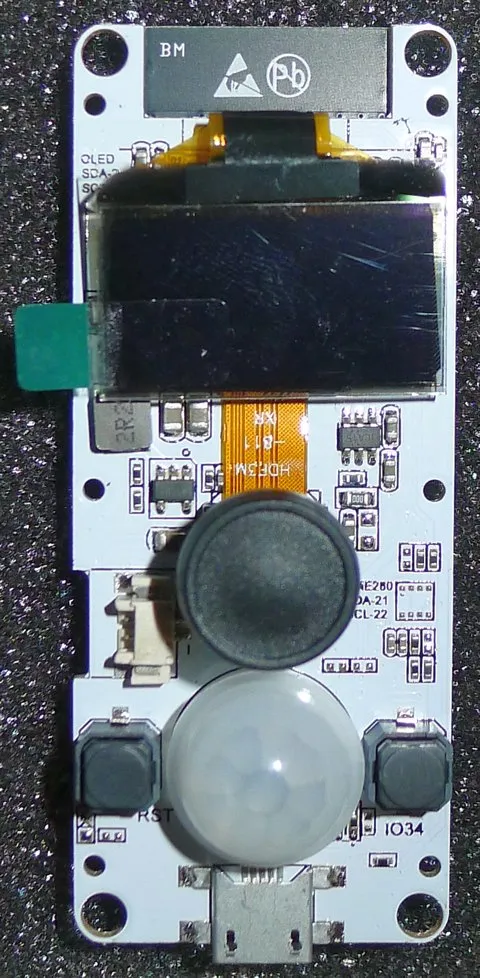

Lilygo TTGO T-Camera

Lilygo TTGO T-Camera.

• ESP32-WROVER-B Wireless
• 2MP OV2640 camera with fisheye lens
• 0.96″ 128×64 OLED display connected via SSD1306 I2C display controller
• Microphone
• micro USB port for power and programming (CP2104)
• AS312 PIR sensor
• 5-pin I2C header with 5V, 3.3V, and GND
• Reset and user (IO34) buttons, LED
• Power Supply 5V via micro USB port, support for LiPo battery via 2-pin header (cable included) and IP5306 charging chip
