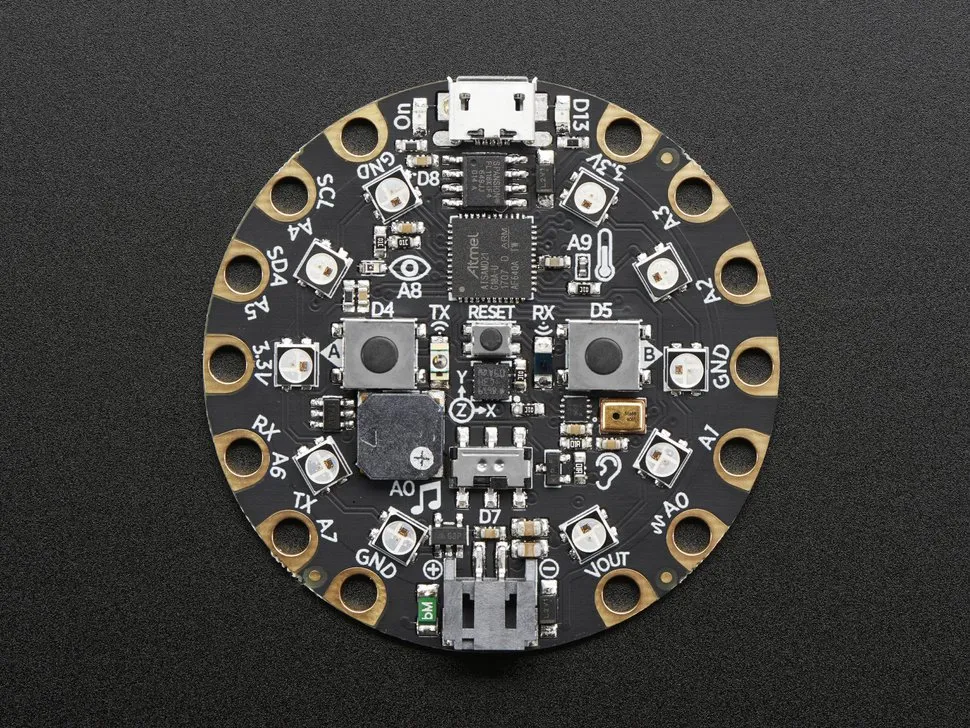

Adafruit Circuit Playground Express

Adafruit 3333 Circuit Playground Express edcational board.

Make faster and easier than ever with MakeCode, code.org CSD, CircuitPython or Arduino!

Features:

• 10 mini NeoPixels, each one can display any color
• Motion sensor (LIS3DH triple-axis accelerometer with tap detection, free-fall detection)
• Temperature sensor (thermistor)
• Light sensor (phototransistor). Can also act as a color sensor and pulse sensor.
• Sound sensor (MEMS microphone)
• Mini speaker with class D amplifier (7.5mm magnetic speaker/buzzer)
• 2 Push buttons, labeled A and B
• Slide switch
• Infrared receiver and transmitter - can receive and transmit any remote control codes, as well as send messages between Circuit Playground Expresses. Can also act as a proximity sensor.
• 8 alligator-clip friendly input/output pins
• Includes I2C, UART, 8 pins that can do analog inputs, multiple PWM output
• 7 pads can act as capacitive touch inputs and the 1 remaining is a true analog output
• Green "ON" LED so you know its powered
• Red "#13" LED for basic blinking
• Reset button
• ATSAMD21 ARM Cortex M0 Processor, running at 3.3V and 48MHz
• 2 MB of SPI Flash storage, used primarily with CircuitPython to store code and libraries.
• MicroUSB port for programming and debugging
• USB port can act like serial port, keyboard, mouse, joystick or MIDI!
