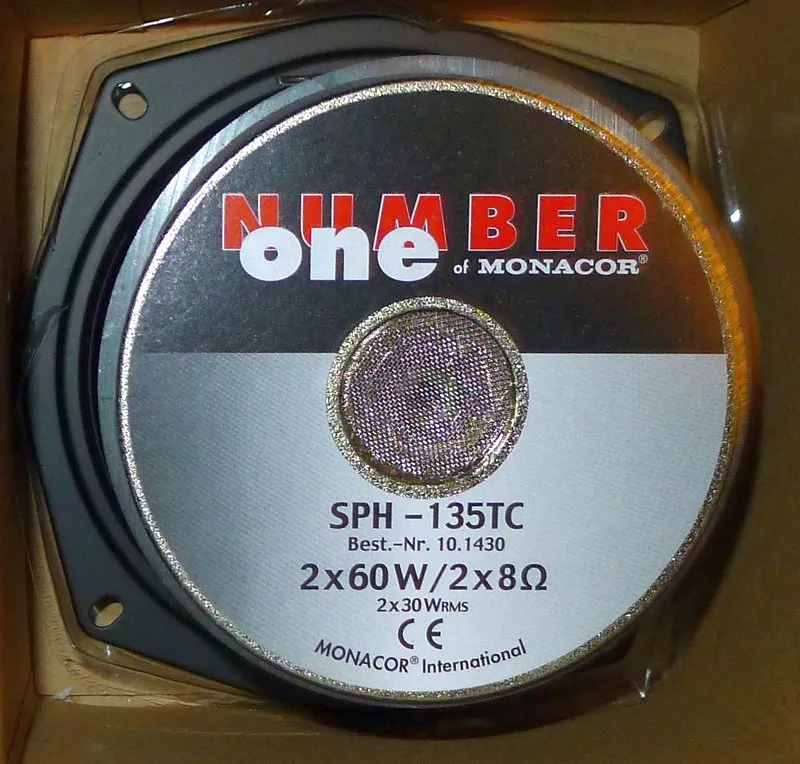

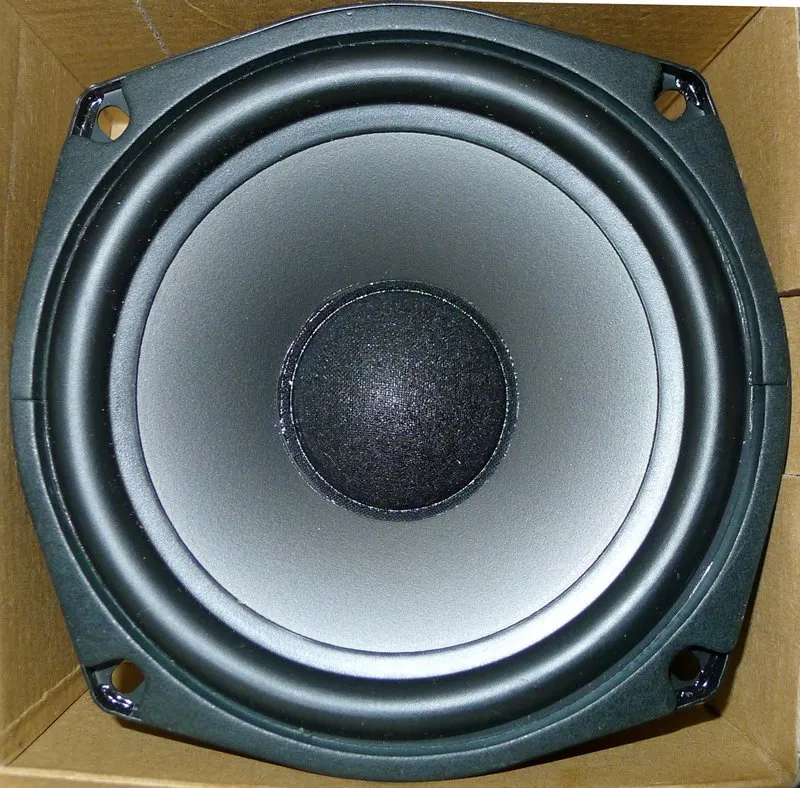

Monacor SPH-135TC dual voice coil mid-woofer 5.25" 8 ohm

Monarch / Monacor SPH-135TC 13,5cm 5.25" dual voice coil 8 ohm mid/woofer. Ook bekend onder bestelnummer 10.1430.

• Polypropylene cone with good midrange attenuation
• Suitable for both miniature subwoofers and powerful 2-way speaker systems, as bookshelf speakers or extra slimline column speakers
• Impedance (Z) 2 x 8 Ω
• Frequency range f3-6,000 Hz
• Resonant frequency (fs) 40 Hz
• Power rating (RMS) 2 x 30 W
• Peak music power output (MAX) 2 x 60 W
• Sensitivity 85 dB/W/m
• Suspension compl. (Cms) 1.69 mm/N
• Moving mass (Mms) 8.9 g
• Mech. Q factor (Qms) 3.44
• Electr. Q factor (Qes) 0.48
• Total Q factor (Qts) 0.42
• Equivalent volume (Vas) 16 l
• DC resistance (Re) 2 x 7.5 Ω/ 3.8 Ω
• Force factor (BxL) 4.2 Tm
• Voice coil induct. (Le) 2 x 0.6 mH/ 0.6 mH
• Voice coil diameter Ø 20 mm
• Voice coil former aluminium
